Product Description:

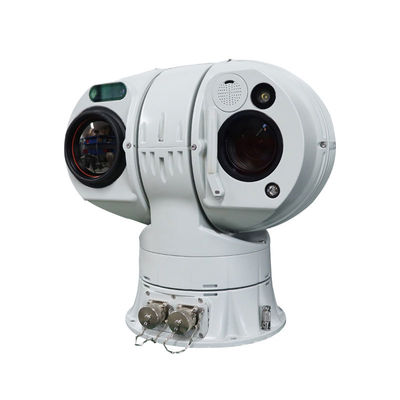

The HP-DMS15BLIEGIS series uses multi-spectral imaging technology, computer control technology, image processing technology, intelligent analysis technology, platform stabilization technology, etc., which can be fixed in key areas, realize air-ground integrated target monitoring, detection, tracking and recording evidence, and clearly and stably monitor, detect and record evidence of sea targets. It can also be used for auxiliary navigation, maritime search and rescue, and key sea area monitoring. Optional 10-inch display control PAD and micro control keyboard are suitable for small boats.
Users have the flexibility to choose between auto and manual focus options with the PTZ Thermal Imaging Camera. This feature enables precise adjustment of the focus to ensure that the captured thermal images are sharp and detailed.
With a 360° continuous rotation capability, the PTZ Thermal Imaging Camera offers unmatched coverage and monitoring capabilities. Users can pan the camera in any direction without limitations, providing comprehensive surveillance of the surrounding area.
Whether deployed for security surveillance, industrial inspections, or search and rescue operations, the PTZ Thermal Imaging Camera is a versatile and reliable tool that delivers exceptional thermal imaging performance. Its advanced features, rugged design, and user-friendly interface make it a valuable asset for various applications.
Features:
- It can integrate low-light high-definition visible light and uncooled thermal imaging, which can effectively meet the monitoring needs under day and night and all-weather conditions;
- The rotation speed is 80°/s, the acceleration is 100°/s², the start and stop are fast, and the operation is smooth, which helps to capture and track fast-moving targets;
- The azimuth rotation range is 0°~ 360°, and the pitch rotation range is -90° to +90°, achieving no-blind-angle detection and full-dimensional coverage;
- Automatic tracking module, supplemented by high-precision servo control, ensures stable tracking of the target during rapid movement and direction changes;
- Supports target intrusion detection, motion detection and other abnormal behavior detection, target classification and recognition, hotspot alarm, radar linkage, 3D zoom positioning and other functions;
- IP67 protection, rainproof, dustproof, corrosion-resistant, and electromagnetic interference-proof, suitable for harsh outdoor environment.
Technical Parameters:
| Type |
HP-DMS15BLIEGIS-6110-2132 |
| Detection |
|
ship
(20×5m)
|
car
(4.6m×2.3m)
|
person
(1.8m×0.5m)
|
| Thermal Camera |
15km |
5km |
3.5km |
| Daylight Camera |
15km |
7km |
3 km |
|
Daylight
Camera
|
1. Sensor: 1/1.8″ target surface CMOS
2. Resolution: 2688×1520
3. Illumination: Color 0.0001 Lux@(F1.6,AGC ON), Black and White 0.00005 Lux@(F1.6,AGC ON)
4. Lens: 6.6-264mm HD lens, electric zoom, manual/auto focus
5. Video format: H.264/H.265
6. Image enhancement: Support AISP, achieve ultra-low light full color, support wide dynamic, strong light suppression, electronic image stabilization, digital noise reduction, automatic white balance, etc.
7. Defog: Supports optical/electronic dual defog
|
|
Thermal
Camera
|
1. Detector: VOx uncooled
2. Resolution: 640×512
3. Pixel: 12μm
4. Band: 8μm～14μm
5. Lens: 100mm;
6. Field of view: 4.4°×3.5°
7. NETD: ≤40mk (@25℃ F1.0)
8. Video format: H.264/H.265
9. Lens control: electric zoom, manual/auto focus
10. Correction: automatic/manual/background correction
11. Polarity pseudo color: hot black/hot white polarity, and a variety of pseudo colors
12. Image adjustment: support brightness, contrast, gamma correction and other parameter adjustment
13. Electronic magnification: 1×～8× digital magnification, support global synchronous display
14. Hot spot alarm: support
|
| Laser illuminator |
1.Laser type: infrared GHT-III high-definition homogenized light source
2. Laser power: <3W
3. Laser wavelength: 808nm±5nm
4. Illumination angle: 3°～65°
5. Illumination distance: 300m
Illumination control: photosensitivity automatic/forced on, off
|
| Pan Tilt |
1. Window: Double/triple window
2. Wiper: Support intelligent automatic wiper
3. Rotation range: 360° continuous rotation horizontally, -90°～+90° pitch
4. Zero position setting: Support horizontal and pitch zero point setting
5. Rotation speed: horizontal 0.01°/s～120°/s, pitch 0.01°/s～80°/s
6. Acceleration: ≥100°/S²
7. Positioning accuracy: 0.02°
8.Image stabilization accuracy: two-axis gyro stabilization
9. Drive mode: Direct drive by torque motor, high-speed start and stop, and linkage tracking with radar
|
Applications:
It can be equipped on various types of ships and can also be installed on vehicles.
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.Support and Services:
The Product Technical Support and Services for the PTZ Thermal Imaging Camera include:
- Installation assistance and guidance
- Troubleshooting support for technical issues
- Software updates and firmware upgrades
- User manuals and documentation
- Training and product demonstrations
- Warranty information and claims processing
Packing and Shipping:
Product Packaging:
The PTZ Thermal Imaging Camera is carefully packaged to ensure its safety during transportation. It is wrapped in protective materials and placed in a sturdy cardboard box to prevent any damage. The packaging is designed to be compact and efficient, reducing the risk of any mishaps during shipping.
Shipping:
Orders for the PTZ Thermal Imaging Camera are processed promptly to ensure quick delivery. The camera is shipped using reputable courier services to ensure timely and secure transportation. Customers will receive a tracking number to monitor the status of their shipment and can expect their product to arrive in excellent condition.
FAQ:
Q: What is the brand name of this PTZ Thermal Imaging Camera?
A: The brand name is Hope-Wish.
Q: What is the model number of this PTZ Thermal Imaging Camera?
A: The model number is HP-DMS.
Q: Where is this PTZ Thermal Imaging Camera manufactured?
A: This camera is manufactured in China.
Q: What are the key features of the Hope-Wish HP-DMS PTZ Thermal Imaging Camera?
A: Some key features include thermal imaging capability, pan-tilt-zoom functionality, high-resolution imaging, and advanced thermal sensing technology.
Q: Is the Hope-Wish HP-DMS PTZ Thermal Imaging Camera suitable for outdoor use?
A: Yes, this camera is designed for outdoor use and is equipped to withstand various weather conditions.
