Product Description:

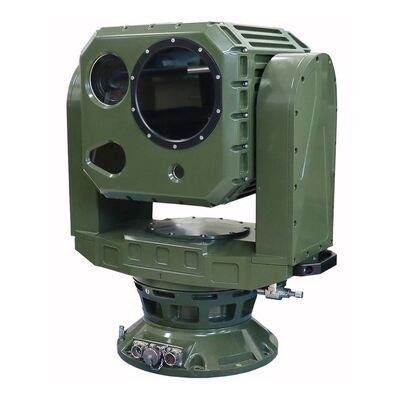

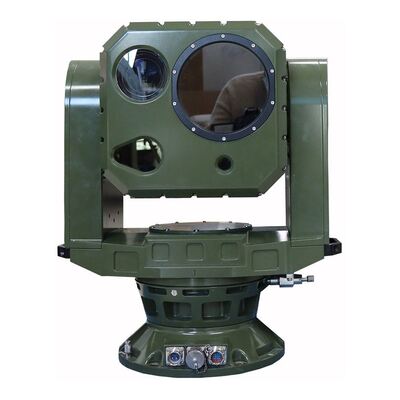

HP-DMA35BLIE--TVC6516-2150-LRF10K heavy-duty dual-band photoelectric turntable is a long-range photoelectric detection system independently developed, which can integrate multi-spectrum detection modules such as high-definition visible camera, Un-cooled thermal imaging, etc. , laser ranging and other modules can be installed as needed to realize the functions of all-weather, all-time, all-dimensional detection, location, tracking, identification and tracking of targets, the utility model can be widely applied to the three-dimensional security prevention of key areas and key targets such as border and coastal defense, military bases, airports, harbors, nuclear, biological and chemical facilities, Vehicle-mounted applications, boat-mounted applications etc. .
The product adopts spherical design, strong wind resistance, low stirring, stable and clear imaging; it adopts up and down split structure design, can be packed and transported independently, and disperses the whole machine weight, it greatly improves the product transport ability under the complex terrain environment; the use of Modular design, according to customer requirements, flexible collocation of detection channels, flexible selection of optical configuration, in order to meet the requirements of detection, identification and identification under various weather conditions such as full black and fog, rain, snow, etc. , the ball bin can be filled with nitrogen up to IP67 protection level, and can work reliably in the harsh environment in the field for a long time.
Features:
- Strong load capacity: it can support large magnification visible light camera, large aperture refrigeration thermal imager, to achieve ultra-long-range target observation;
- Detection spectrum width: integration of high-definition visible light, medium-wave thermal imaging, dual-band detection advantages complement each other, combining active and passive detection, multi-source data fusion processing, so that the target can not hide, to meet the day and night, all-weather environment monitoring needs;
- Fast turning speed: the speed of rotation is up to 80 °/s, the acceleration is up to 100 °/s 2, the start-stop is quick, the operation is smooth, it is helpful to capture and track the moving target quickly;
- Wide coverage: azimuth rotation range 0 ° ~ 360 °, pitch rotation range -90 ° ~ + 90 °, to achieve non-dead angle detection, full-dimensional coverage;
- High control precision: the precision angle encoder with high-precision closed-loop servo control system, positioning accuracy up to 0.02 ° , high-performance image processing unit with high-precision focusing control mechanism, to achieve accurate automatic focusing;
Technical Parameters:
|
Model
|
HP-DMA35BLIE-TVC6516-2150-LRF10K |
|
Thermal Camera
|
1. Detector: 5th generation FPAVOx uncooled detector
2. Wavelength: 7.5～14 μm
3. NETD: 40mK
4. 31 ~ 155mm, 5x continuous optical zoom
5. Lens control: Electric Zoom; Manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, accurate and high speed; 3CAM mode and AS + DOE optical structure, high infrared transmittance, the zoom process has no virtual focus and the axis is small
6. Image Enhancement: SDE Digital Image Enhancement Technology, enhance image details, support 255 level thermal image enhancement adjustment
7. Pseudo-color polarity: 16 pseudo-color images, hot black/hot white polarity
8. Image parameters: AGC automatic gain control, brightness, contrast adjustment
9. Electron doubling: 1.0 ~ 8.0 × continuous doubling (step length 0. 1) , supporting optical electron relay doubling, supporting global hawk-eye diagram
10. Bad Correction: support for bad correction
11. Image Correction: support manual correction, background correction,
automatic correction time interval, Gamma correction parameters adjustable
12. Bright Light Protection: supports protection against Sun Damage
13. Detector Array: 640 × 512
14. Field of view: 20 . × 15 .～4 . ×3.
|
|
Detection Distance
(Thermal)
|
Small boat(2.3×2.3m):13km Human(1.8×0.5m): 4.8km |
|
Recognition Distance
(Thermal)
|
Small boat(2.3×2.3m):3.4km Human(1.8×0.5m): 1.3km |
|
Identification Distance
(Thermal)
|
Small boat(2.3×2.3m):1.7km Human(1.8×0.5m): 0.6km |
|
Day Camera
|
1. Sensor type: backlit ultra-low illumination star-level CMOS
2. Minimum illuminance: Color: 0.0005 lux; black and white: 0.0001 lux; 0 Lux (IRON)
3. Lens: 8 ～ 500mm 62x continuous optical zoom, Mega HD electric zoom; Manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, accurate and high speed.
4. Image Processing: support for white balance, electronic shutter, frame
accumulation, backlight compensation, strong light suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic, heat wave drift
suppression.
5. Day-night type pass light: 0.4-0.75 um visible broad spectral window and
0.8-0.95 um near infrared spectral window
6. Pixel:1920×1280
Support electronic transmission fog, optical transmission fog
|
|
Detection Distance
(Day Camera)
|
Small boat(2.3×2.3m):18km Human(1.8×0.5m): 8km |
|
Recognition Distance
(Day Camera)
|
Small boat(2.3×2.3m):11km Human(1.8×0.5m): 5km |
|
Identification Distance
(Day Camera)
|
Small boat(2.3×2.3m):5.5km Human(1.8×0.5m): 2.5km |
|
Laser Range Finder
|
1. Range: 100 to 10000 meters
2. Ranging Accuracy: ± 3m
3. Ranging Frequency: 0.2 Hz
4. Laser wavelength: 1570 nm
5. Eye safe.
|
|
Audio and video
|
1. Resolution: 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 288; 352 × 240
2. Visible resolution: 2592 × 1520; 2560 × 1440; 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 240
3. Video Coding: H. 265/h. 264/ MJPEG, multi-stream support
4. Video rates: 32 KBPS to 16 Mbps
5. Audio encoding: G. 711A/g. 711U/G726
6. Image rollover: right/left/up/down/diagonal
7. OSD settings: Support Channel name, time, PAN, field of view angle, focal length of the OSD display settings, support preset position name settings
|
|
Intelligent function
|
1. Fire Detection Alarm: Threshold Level 255, target size, target number 1-16 can be set, automatic selection of the most prominent target display, hot tracking
2. Intelligence analysis: support intrusion detection, cross-border detection,
entry/exit area detection, motion detection, loitering detection, people
gathering, fast moving, target tracking, items left behind, items taken;
Human/vehicle target detection, face detection; and support 16 regional
settings; support intrusion detection, human, vehicle filtering function; support target temperature filtering function
3. Automatic tracking: single-scene tracking support multi-scene tracking support panoramic tracking support alarm linkage tracking
4. Intelligent Information Fusion: support 512 AR intelligent information fusion,
support point of fire, intelligent analysis video identification information fusion, support azimuth angle, field of view, focal length, multiple information fusion
5. Image Fusion: support 18 kinds of dual-light fusion mode, support picture-in-picture function
6. Alarm management: Support Alarm capture upload
|
|
Enhanced function
|
1. Ranging function: support passive ranging; support optional laser ranging
2. Strong light protection: support, protection from Sun Burn function
3. Temperature Correction: non-thermal design, imaging sharpness is not affected by temperature
4. Scene mode: support multi-configuration scene, adapt to different environment applications
5. Auto-focus tuning: support remote auto-focus accuracy parameter adjustment, adapt to different scenarios
6. Day-night cruise: day-night cruise groups with different preset, day cruise 1-40 preset, night cruise 41-80 preset, according to the state of light automatically
|
| |
switch day and night, adapt to different space-time scenarios
7. Lens servo: support lens pre-position, focal length back, focal length positioning function
8. Power-off memory: support to restore the pre-power-off position, pre-position state, cruise state, line scan state
9. Off and on: support
10. Camera diagnosis function: support network alarm, support IP conflict alarm, support illegal access alarm (illegal access number, lock time can be set) ,
support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card) , video block alarm, anti-sun damage (support threshold, block time can be set)
11. Life Cycle Management: Health Index recording function, support working time, shutter times, working temperature, limit temperature, etc.
12. Remote Maintenance: with fault inquiry, self-examination, remote restart function; online upgrade, remote upgrade
13. Keyframe settings: support keyframe interval 100-level adjustable
14. Configuration File: Support Configuration File Import and export function
15. Web Access: support WEB full function configuration, remote online upgrade
|
|
Security control
|
1. Support illegal access alarm: illegal access number, lock time can be set
2. Support three levels of user rights management, administrators, operators, ordinary users
3. Security mode: authorized user name and password, support IP white list and black list, Mac White list and black list
4. User Login Lock
|
|
Se rvo turntable
|
1. Structure: spherical, multi-dimensional free-form surface shape, small wind resistance, strong anti-shake, can resist 12 strong wind
2. Two-axis two-frame, up and down split design, can be independent packaging transport, rapid combination
3. Windows: Dual/triple windows, 2/3 band sensors, wiper
4. Level range: N × 360 ° continuous rotation, after power failure can be mechanically locked
5. Pitch range:-90 ° ~ + 90 ° , with soft limit function, program can be set
6. Rotation Speed: level 0.01 ° ~ 80 °/s, pitch 0.01 ° ~ 60 °/s
7. Acceleration: 100 ° S 2 level, 100 ° S 2 pitch
8. Speed adaptation: with intelligent induction speed change function, support lens focal length speed adaptation function
9. Driving mode: adopting high torque rare earth permanent magnet synchronous motor direct drive, high speed start and stop
10. Positioning accuracy: better than 0.02 °
11. Location Time: less than 4s
12. Zero setting: support for horizontal and pitch zero setting
13. Preset cruise: 3000, supports 16 cruise routes, each can support 256 preset positions
14. Path scan: Support Preset Point Cruise, day and night cruise, line scan, frame scan, apple skin scan, scan speed can be set
15. Over watch: preset position/pattern scan/cruise scan/vertical scan/frame scan/panoramic scan/apple peel scan/horizontal fan scan
16. Motor Protection: turntable block and turn protection, high reliability
|
| |
17. Gyro image stabilization: optional two-axis gyro stabilization, pitch and roll ≤ ± 10 ° , period greater than 6 seconds, los stabilization accuracy ≤2 mrad
(RMS)
|
|
Electrical interface
|
1. Network interface: 1-way RJ45, 10/ 100base-t adaptive
2. Network protocol: support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocol; support ONVIF and GB28181 protocol
3. RJ45-Ethernet
4. Secondary development: provide free SDK, easy to use or convenient secondary development
5. Physical interface: Alloy Waterproof Aviation Plug
6. Optical network: (optional built-in Fiber Module, single mode fiber output, improve anti-interference)
|
| Video storage |
Built-in 256GB memory card |
|
Power
consumption
|
1. Power: with ultra-wide input power adapter, AC90V ~ 305V to DC48V
2. Power consumption: the maximum power consumption of the turntable is less than 500W and the stable power consumption is less than 150W
|
|
Environmental Indicator
|
1. Working Temperature:-40 °C ~ + 60 °C
2. Storage Temperature:-45 °C ~ + 70 °C
3. Humidity: < 90% Rh
4. Lightning protection: Interface Circuit built-in surge protection, 6000V
5. Salt spray: in PH 6.5 ~ 7.2, continuous spray 96 hours, no change in the surface
6. Protection class: IP66(Ball Chamber air-tight IP67)
|
| Dimension weight |
Dimensions: Ф424 mm × H544 mm
Total weight: ≤40 kg
|
Applications:
The Hope-Wish Long Range Thermal Camera, model HP-, is a cutting-edge thermal imaging camera designed and manufactured in China, offering exceptional performance in various application occasions and scenarios. With a detection range of 5-10KM and a spectral range of 7.5μm to 14μm, this long-distance thermal camera provides reliable and precise thermal imaging capabilities for both professional and industrial use.
One of the primary application occasions for the Hope-Wish Long Range Thermal Camera is in border security and perimeter surveillance. Its PTZ thermal sensor type and wide tilt range of -45° to +90° enable comprehensive monitoring of vast areas, detecting intrusions or unauthorized movements from a significant distance. The minimum focus distance of 5-10KM ensures that even the smallest heat signatures can be captured clearly, making it ideal for military and defense operations.
In addition, this long-distance thermal camera is extensively used in search and rescue missions. The advanced thermal imaging camera technology allows rescuers to locate individuals in challenging environments such as dense forests, mountains, or during nighttime operations, where visibility is limited. The reliable long-range detection capability enhances the efficiency and success rate of rescue teams.
Industrial applications also benefit greatly from the Hope-Wish Long Range Thermal Camera. It is widely used for monitoring critical infrastructure like power plants, pipelines, and oil refineries to detect overheating or potential faults before they cause failures. The precise thermal imaging helps maintenance crews perform timely inspections and prevent costly downtime.
Moreover, this thermal imaging camera is valuable in wildlife observation and environmental monitoring. Researchers and conservationists can track animal movements and study behavior without disturbing the natural habitat, thanks to the non-invasive long-distance thermal detection.
Overall, the Hope-Wish HP- model Long Range Thermal Camera is a versatile tool suited for diverse scenarios requiring accurate heat detection over long distances. Its robust build, advanced PTZ thermal sensor, and exceptional spectral range make it a preferred choice for security, rescue, industrial, and environmental applications worldwide.
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
